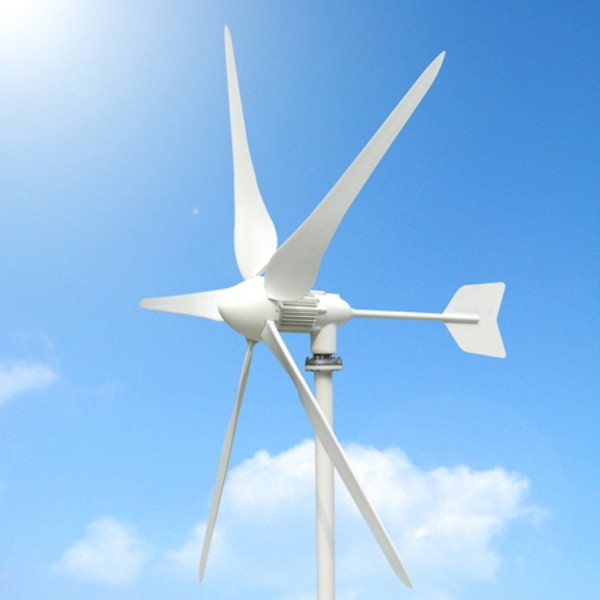

HY-3000 Wind Turbine Features:
· 5 blade designed for low wind area, light breeze start up
· Amazingly quiet operation with minimal vibration
· Electromagnetic braking and blade aerodynamic braking
· High efficiency achieved by perfect match on the generator and blades
· Extreme weather resistance
· Extreme wind resistance
· Anti-rust & anti-corrosion
· Light weight, easy installation
· Long lifetime, maintenance-free
Wind Turbine Design Structure:
Model | HY-3000 | |
Rated Output | 3000W | |
Peak Output | 3500W | |
Rated Voltage | off-grid: DC48/110V | on-grid: DC110/220V |
Start-up Wind Speed | 2 m/s or 4.5mph | |
Cut-in Wind Speed | 2.5m/s or 5.6mph | |
Rated Wind speed | 12m/s or 26.8mph | |
Working Temp. range | from -40°C to 60°C | |
Survival Max. wind | 50m/s or 110mph | |
Over-speed control | Electromagnetic & blade aerodynamic braking | |
Number of Blades | 5 | |
Rotor Diameter | 3m | |
Swept Area | 7.07m² | |
Blade Material | Nylon fiberglass reinforced composite | |
Generator Type | Brushless 3-phase PMA with high performance Neodymium Magnets | |
Tower-top Weight | 70kg | |
Tower Type | monopole, guyed tower, tilt-up tower, rooftop mounting etc. | |
Controller Type | PWM | |
Applications | solar & wind hybrid lighting, on/off-grid power system etc. | |
Product Life | 15 years | |
Warranty | 3 years (optional 5 years) | |
Years on Market | 5 years | |
Certificate | CE, RoHS, ISO9001:2008, ISO14001 | |
Measurement | 197*77*34cm | |
Gross Weight | 46kg | |
