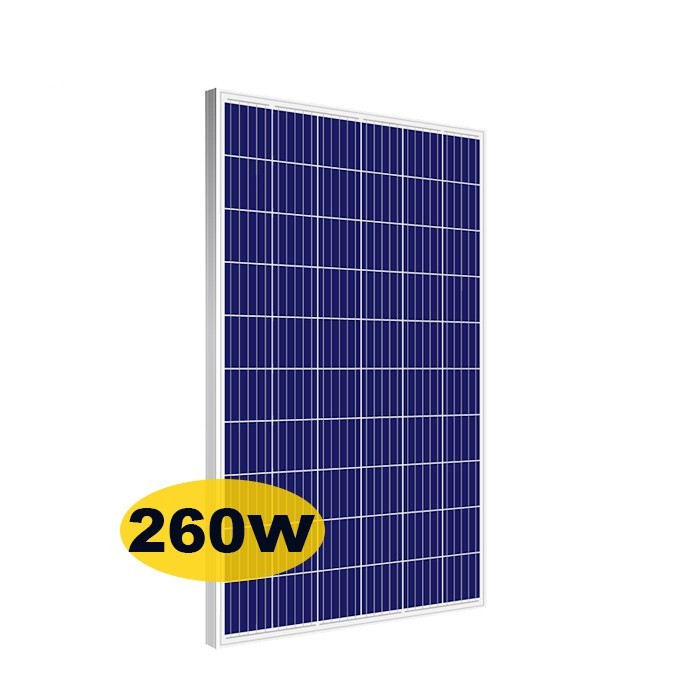

260W Poly Solar panels

260W Poly Solar panels

Product Name： 230-270 Watt Poly-crystalline solar panels Brand： HUIZHOU YING Industrial Model： HUIZHOU-YS Warranty： The warrantee period covers all product life Packing way： Carton box

  • Product Name： 260W Poly Solar panels
  • Brand： HUIZHOU YING Industrial
  • Model： YS230P-60
  • Warranty： 120 months
  • Packing way： Wooden case/wooden pallet
Online Inquiry


solar power system｜Solar Water Pump｜Solar Refrigerator & Freezer｜ solar light

ModelYS230P-60YS240P-60YS245P-60YS250P-60YS260P-60YS265P-60YS270P-60
Rated Maximum Power at STC230W240W245W250W260W 265W 270W
Maximum Power Voltage (Vmp)29.3V 29.6V 30.1V 30.5V 31.1V31.4V 31.7V
Maximum Power Current (Imp)7.86A8.11A8.19A 8.22A 8.37A8.44A8.52A
Open Circuit Voltage ( Voc)36.5V36.9V37.2V37.5V 38.1V 38.6V 38.8V
Short Circuit Current (Isc)8.51A8.63A 8.67A 8.85A 8.98A9.03A 9.09A
Module Efficiency14.16%14.78% 15.09% 15.40% 15.88% 16.19%16.50%
Power Tolerance 0~+3%0~+3% 0~+3% 0~+3%0~+3% 0~+3%0~+3%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5
Mechanical Parameters
Cell TypePoly-crystalline 156x156mm (6inch)
No. of Cells60 (6x10)
Dimension 1640x992x35/40mm
Glass3.2mm, High Transmission, Low Iron, Tempered Glass
Junction BoxIP65&IP67 Rated
Output CableSection Size: 4mm² , Length: 900mm
Frame Anodized Aluminum Alloy
No. of Bypass Diodes3&6
Connector MC4 Compatible
Working Conditions
Maximum System Voltage

DC 1000V(IEC) / 1500V(IEC) / 600V(UL)

Operating Temperature -40°c~+85°c
Maximum Series Fuse15A
NOCT45±2°c
Application ClassClass A
Temperature Coefficient
Temperature Coefficient of Pmax-0.40%/°c
Temperature Coefficient of Voc -0.31%/°c
Temperature Coefficient of Isc +0.06%/°c
