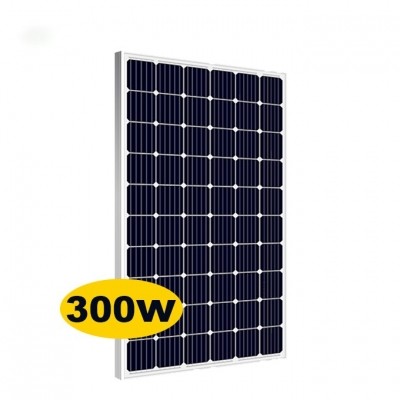

Product Name： 280-300W monocrystalline solar panel Brand： HUIZHOU YING Industrial Model： HUIZHOU-YS Warranty： 12 months Packing way： Wooden case/wooden pallet
DC 1000V(IEC) / 1500V(IEC) DC 1000V(IEC) / 1500V(IEC)
Model YS280M-60 YS285M-60 YS290M-60 YS295M-60 YS300M-60 Rated Maximum Power at STC 280W 285W 290W 295W 300W Maximum Power Voltage (Vmp) 31.8V 32.0V 32.2V 32.4V 32.6V Maximum Power Current (Imp) 8.81A 8.90A 9.02A 9.10A 9.21A Open Circuit Voltage ( Voc) 38.6V 38.7V 39.5V 39.7V 40.1V Short Circuit Current (Isc) 9.49A 9.51A 9.55A 9.61A 9.72A Module Efficiency 17.11% 17.41% 17.72% 18.02% 18.33% Power Tolerance 0~+3% 0~+3% 0~+3% 0~+3% 0~+3% STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 Mechanical Parameters Cell Type Mono-crystalline 156x156mm (6inch) No. of Cells 60 (6x10) Dimension 1640x992x35/40mm Glass 3.2mm, High Transmission, Low Iron, Tempered Glass Junction Box IP65&IP67 Rated Output Cable Section Size: 4mm² , Length: 900mm Frame Anodized Aluminum Alloy No. of Bypass Diodes 3&6 Connector MC4 Compatible Working Conditions Maximum System Voltage Operating Temperature -40°c~+85°c Maximum Series Fuse 15A NOCT 45±2°c Application Class Class A Temperature Coefficient Temperature Coefficient of Pmax -0.39%/°c Temperature Coefficient of Voc -0.29%/°c Temperature Coefficient of Isc +0.05%/°c Model YS280M-60 YS285M-60 YS290M-60 YS295M-60 YS300M-60 Rated Maximum Power at STC 280W 285W 290W 295W 300W Maximum Power Voltage (Vmp) 31.8V 32.0V 32.2V 32.4V 32.6V Maximum Power Current (Imp) 8.81A 8.90A 9.02A 9.10A 9.21A Open Circuit Voltage ( Voc) 38.6V 38.7V 39.5V 39.7V 40.1V Short Circuit Current (Isc) 9.49A 9.51A 9.55A 9.61A 9.72A Module Efficiency 17.11% 17.41% 17.72% 18.02% 18.33% Power Tolerance 0~+3% 0~+3% 0~+3% 0~+3% 0~+3% STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 Mechanical Parameters Cell Type Mono-crystalline 156x156mm (6inch) No. of Cells 60 (6x10) Dimension 1640x992x35/40mm Glass 3.2mm, High Transmission, Low Iron, Tempered Glass Junction Box IP65&IP67 Rated Output Cable Section Size: 4mm² , Length: 900mm Frame Anodized Aluminum Alloy No. of Bypass Diodes 3&6 Connector MC4 Compatible Working Conditions Maximum System Voltage Operating Temperature -40°c~+85°c Maximum Series Fuse 15A NOCT 45±2°c Application Class Class A Temperature Coefficient Temperature Coefficient of Pmax -0.39%/°c Temperature Coefficient of Voc -0.29%/°c Temperature Coefficient of Isc +0.05%/°c
